CNC Milling
We are a company with a long tradition in the field of mechanical metal processing or CNC milling. We offer CNC milling services in larger and especially in smaller series. We specialize in the processing of non-ferrous metals, especially aluminum and brass. We enable customer satisfaction with high quality products.
Machinery park
CNC UNIVERSAL MACHINING CENTRE DMU 50
Technical information:
Working area:
– Travels X/Y/Z mm 650/520/475
Main drive (standard):
– Speed range rpm 20–15,000
– Drive power (40/100% DC) kW 21/16
– Torque (40/100% DC) Nm 111/85
Main drive (optional)
– Speed range rpm 20–15,000
– Drive power (40/100% DC) kW 46/30
– Torque (40/100% DC) Nm 200/130
Main drive (optional)
– Speed range rpm 20–20,000
– Drive power (40/100% DC) kW 35/25
– Torque (40/100% DC) Nm 130/86
Feed
– Rapid traverse X/Y/Z m/min 42
– Maximum thrust force X/Y/Z kN 4.8
Swivelling rotary table
– Clamping area mm ø630×500
– B- /C-axis speed rpm 30*
– Maximum load kg 300
– Swivel range Degrees −35/+110
Tool magazine with double gripper
– Storage positions Number 60
– Maximum tool length mm 300
– Maximum tool diameter mm 80/130
– Tool weight max. kg 8
Control
– ERGOline Control with a 21.5″ multi-touch screen, CELOS and SIEMENS 840D solutionline
CNC vertical machining center HAAS UMC-500SS
High-performance vertical machining center, which already has state-of-the-art equipment as standard.
Technical information:
– diameter of the workbench: 400 mm
– max. table load: 226.8 kg
– X-axis length: 610 mm
– Y-axis length: 406 mm
– Z-axis length: 406 mm
– spindle-table distance (min-max): 102 – 508 mm
– engine power: 22.4 kW
– transmission: direct, in-line
– speed: 12,000 min
– clamping cone: BT 40
– torque: 122Nm @ 2000 min-1
– B-axis tilt: 120st to -35st
– C os rotation: 360st
– working displacement in X, Y, Z axes: 16.5 m / min
– fast movement: in X, Y, Z axis: 30.5 m / min
– number of tools in the magazine: 30 + 1
– tool-tool change: 1.8 sec
– positioning: + -0.005mm
– repeatability: + -0.0025mm
– Renishaw set, 3D button + tool measurement button – wireless
– cooling through the spindle
MoriSeiki SV50 CNC machining center
The CNC machining center SV-50 belongs to the generation of newer machines for small and medium workpieces. The machine is distinguished by technological achievements in the field of manufacturing: the guides are in a roller design, which ensures high speeds. The clamping cone in the spindle has a ceramic coating. This guarantees the accuracy of the clamping cone even after a few million tool changes. The machine also has an automatic pallet change, which helps to shorten the processing times. The LOOKAHEAD function enables milling exactly along the contour of the product up to a speed of 16000mm / min.
Technical information:
– size of machining table WxD mm 950×480
– max. table load kg 1000
– length of the X axis mm 800
– length of the Y axis mm 510
– length Z axis mm 510
– speed range 1 / min 100-10000
– number of tools in the magazine 32
– distance from the table to the spindle mm 150-660
– tool change time sec 1 (3,1)
– max tool length mm 200
– max tool diameter mm 80 (125)
– fast movement X-Y mm / min 32000
– fast movement Z mm / min 32000
– displacement X-Y-Z mm / min 1-16000
– manual feed mm / min 0-1260
– position accuracy. in whole. in the range of mm 0.005
– repeatability mm 0,001

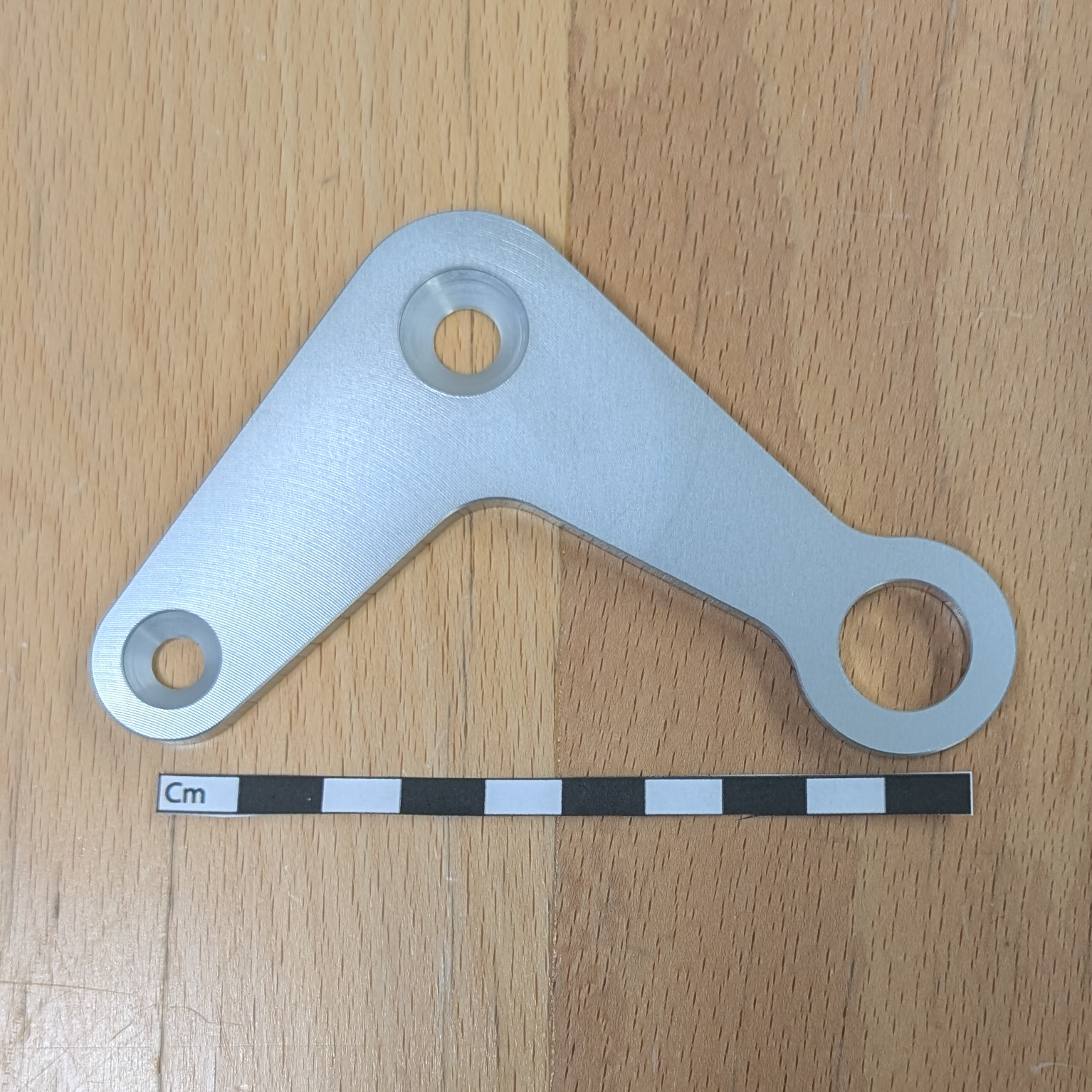

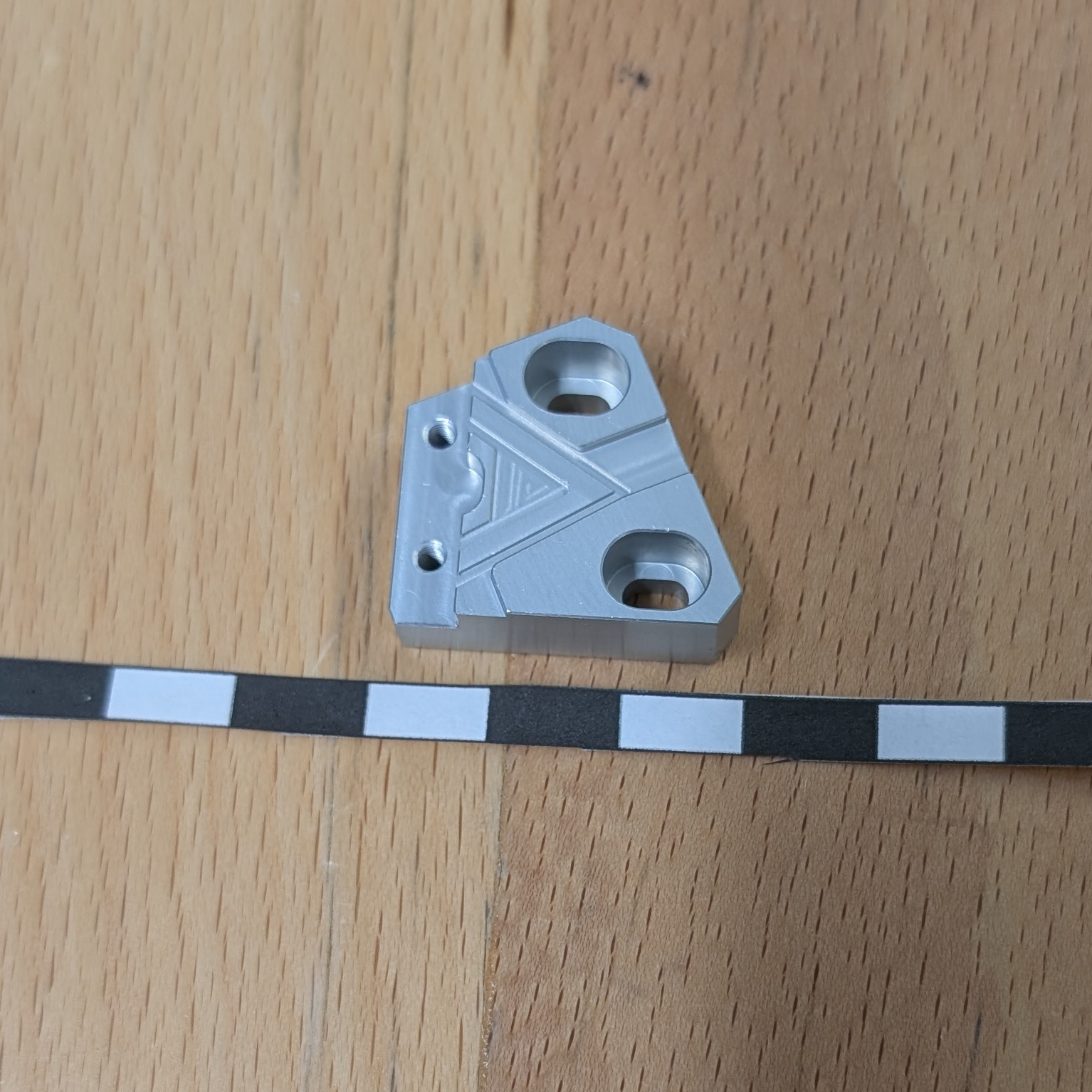

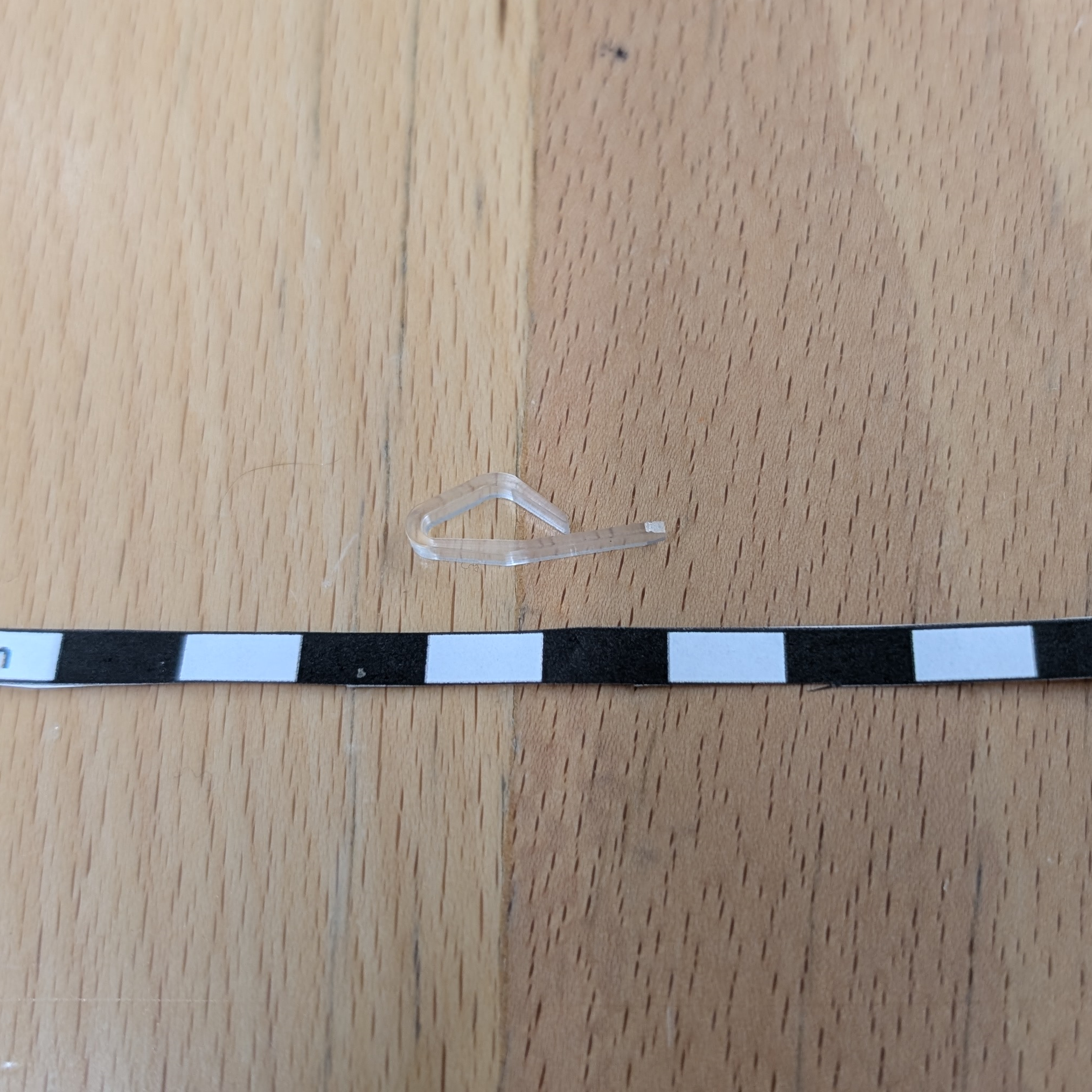

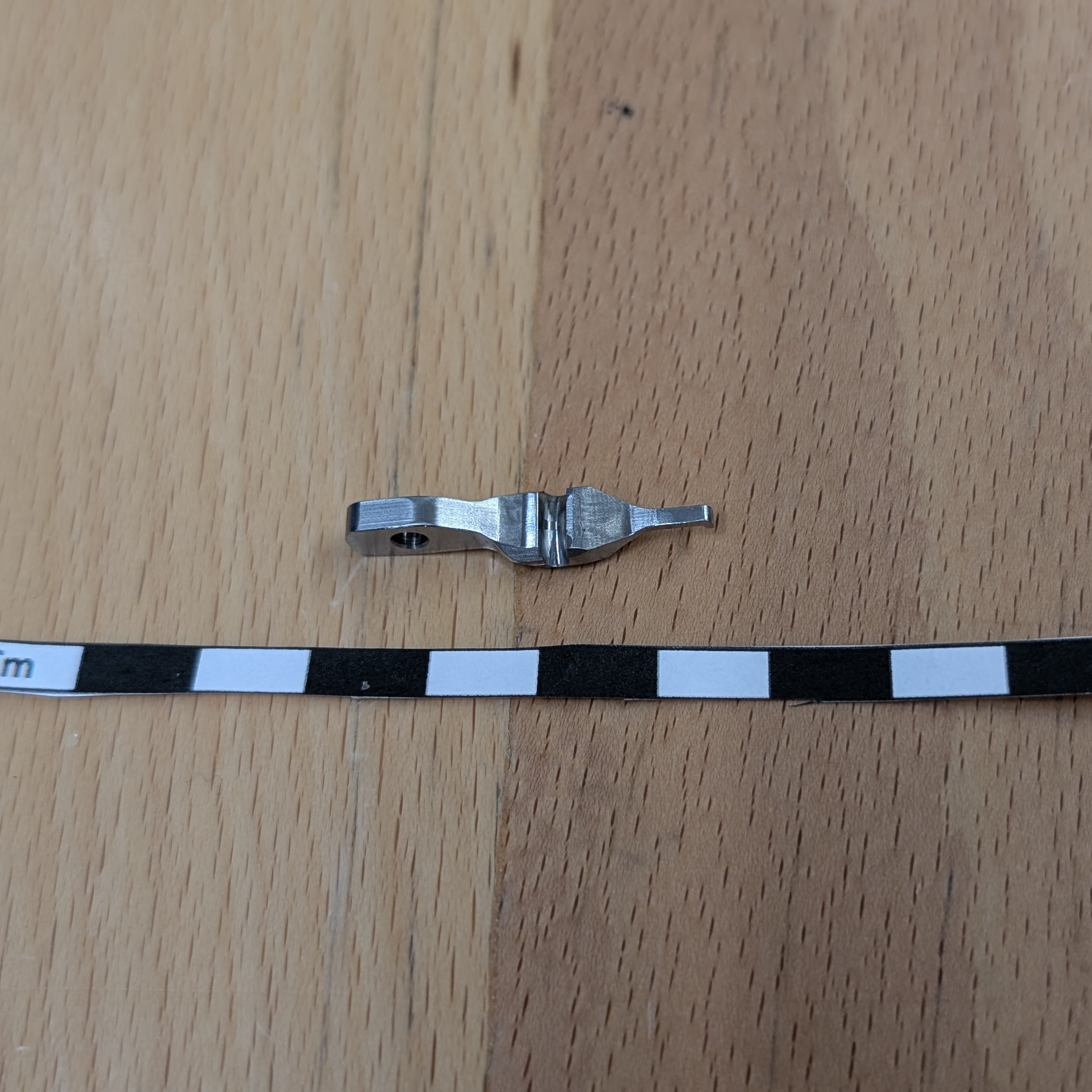

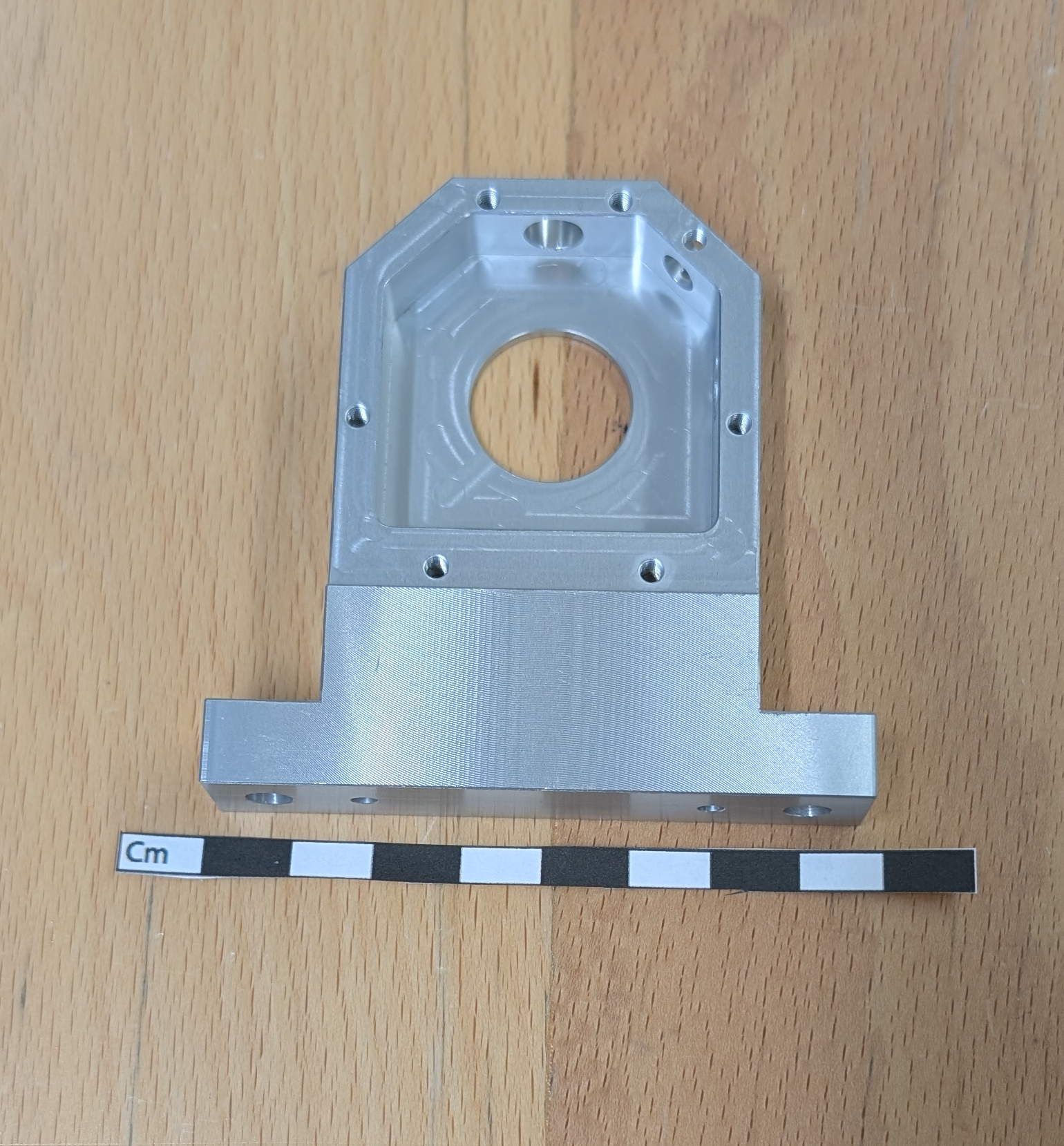

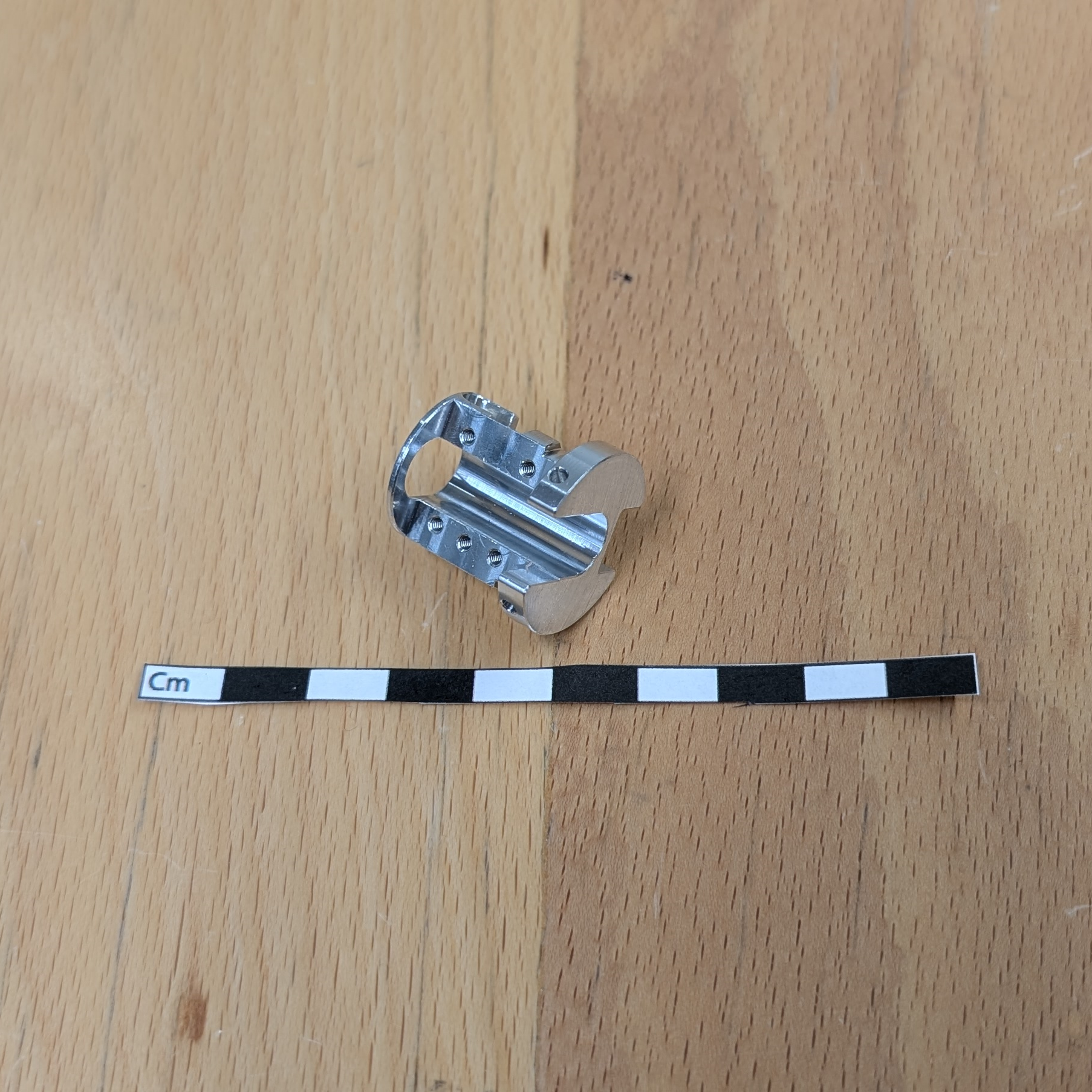

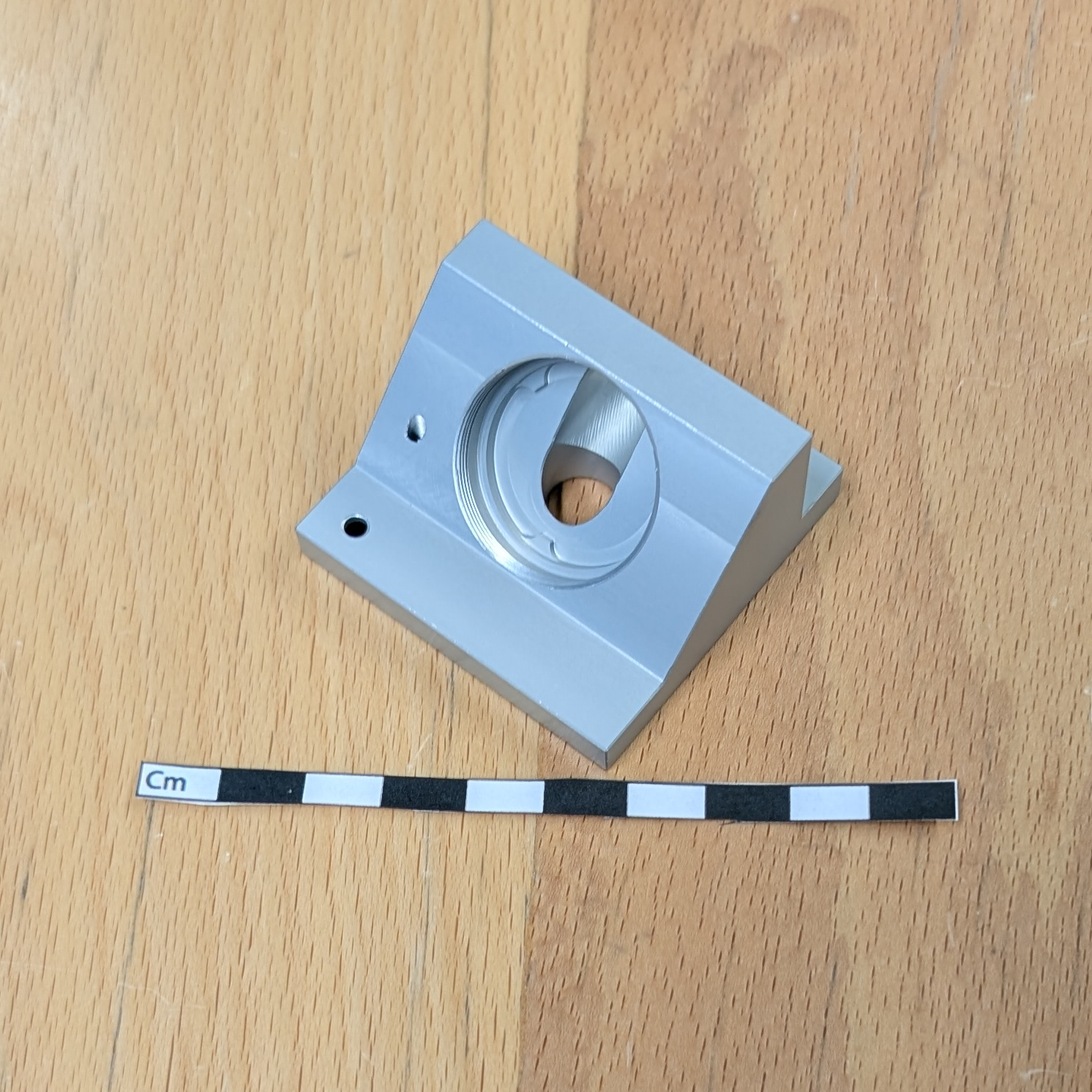

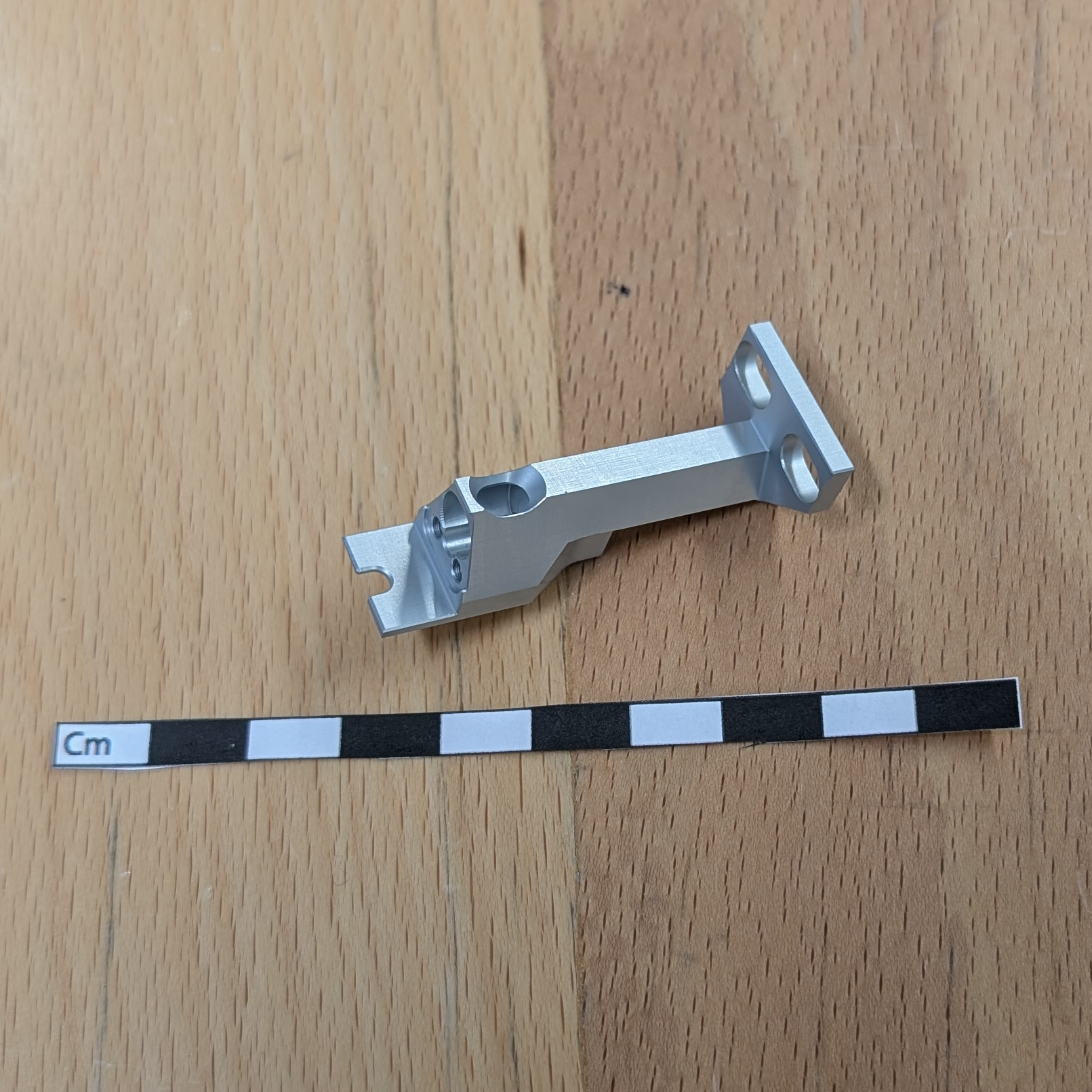

Gallery:
