Measuring station
To ensure accurate manufacturing for measurements, we use ZEISS CMM DuraMax 5/5/5 – CNC coordinate measuring machine (CMM) in cantilever design and Keyence IM Series.
Quality certificate
Measuring park

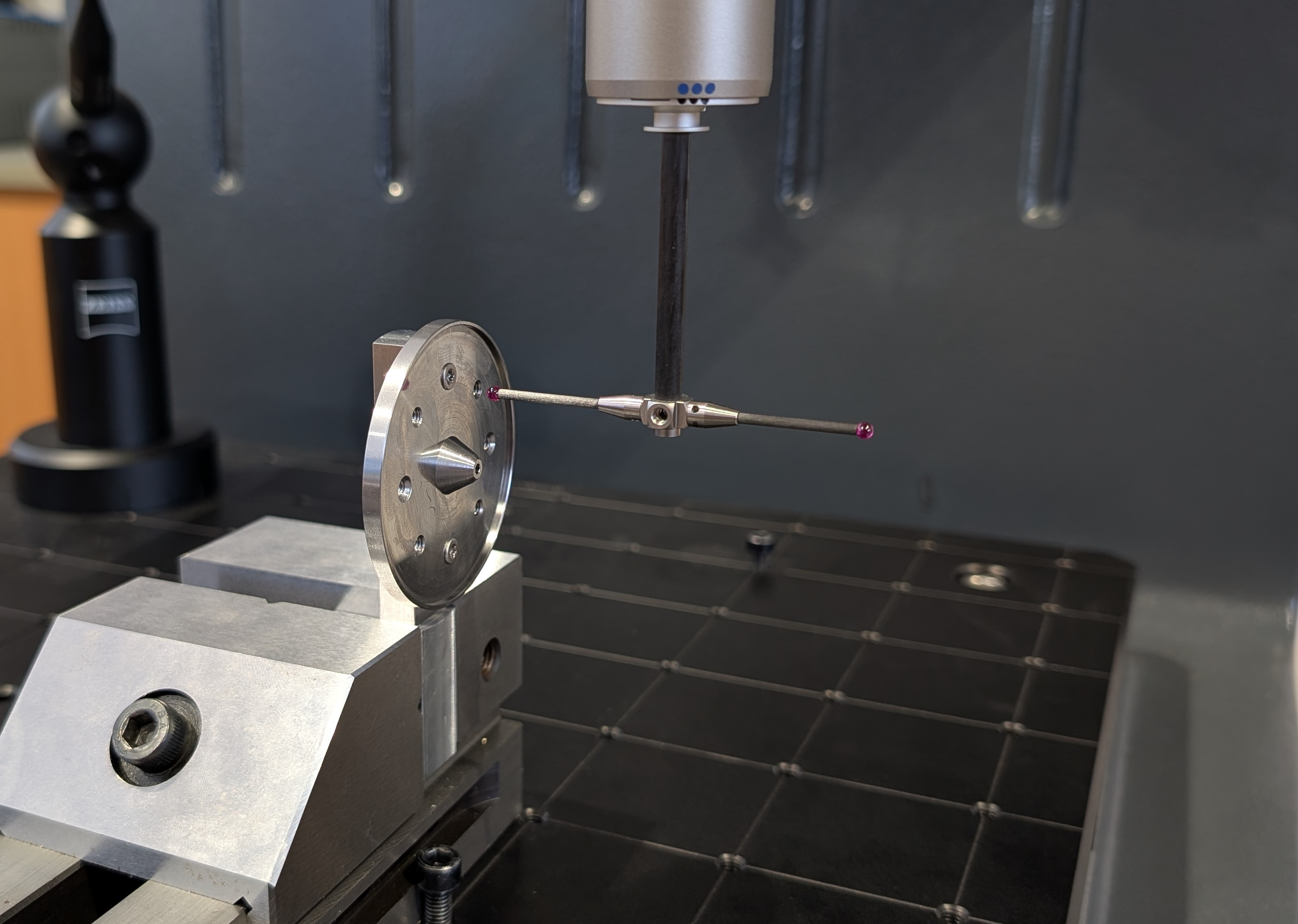

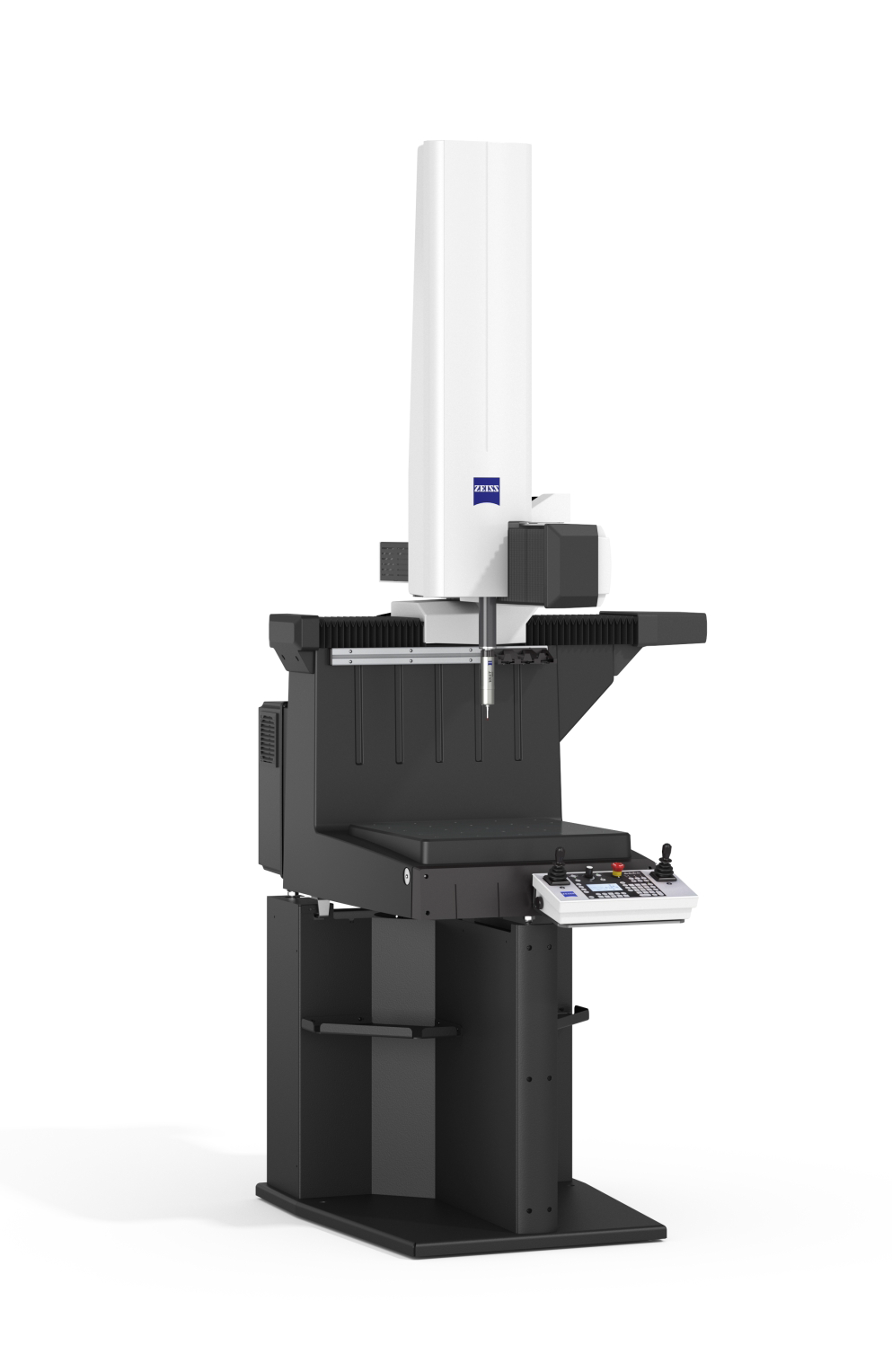

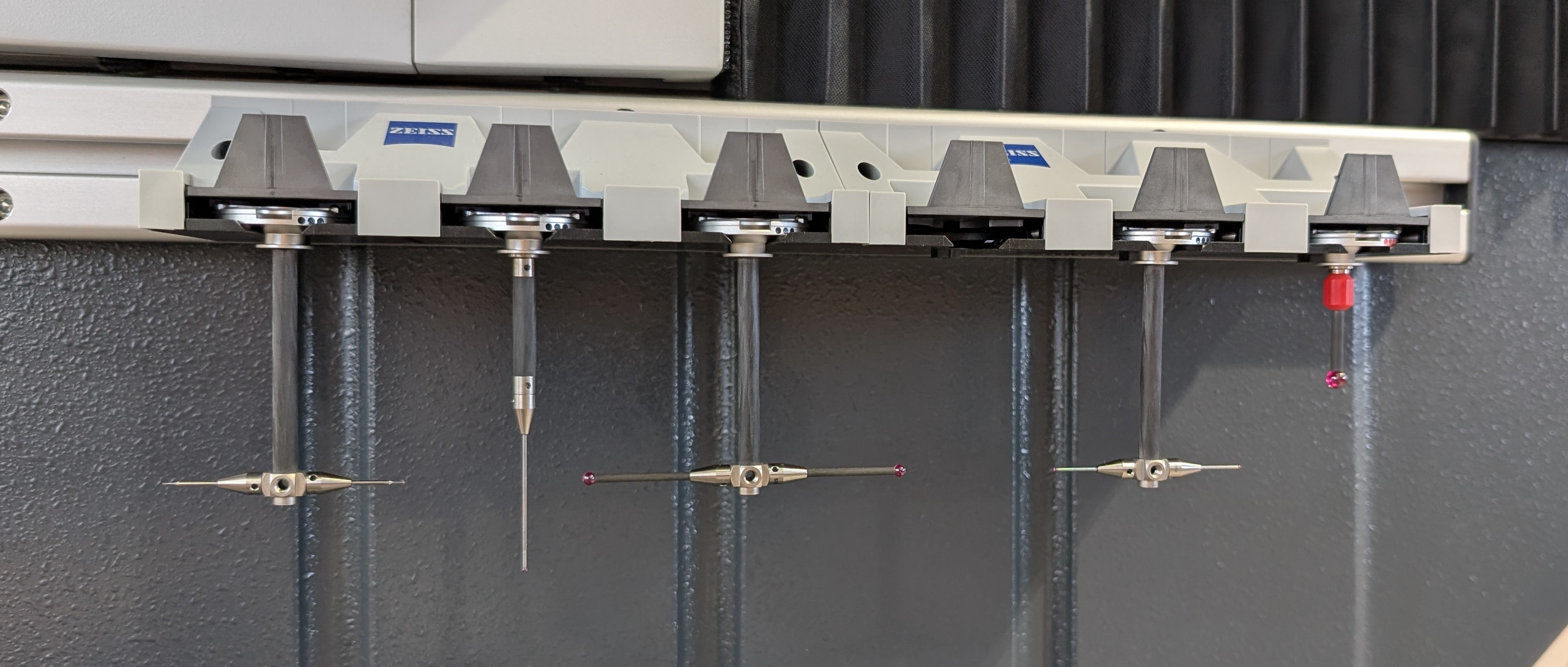

ZEISS CMM DuraMax 5/5/5
The ZEISS CMM DuraMax 5/5/5 is a compact measuring machine designed for high-precision measurement in industrial environments. It has a measuring volume of 500 mm x 500 mm x 500 mm and delivers reliable results. It offers ease of use and quick integration into production processes and is suitable for measuring various components with high accuracy.
Technical information:
- measuring volume X = 500 mm, Y = 500 mm, Z = 500 mm
- Max. Permiss. length measurement Error (MPE) as per ISO 10360-2:2009
– MPE_E0 (3D) = (2.4 + L/300) μm over 18 – 22 °C
– MPE_E0 (3D) = (2.7 + L/250) μm over 18 – 26 °C
– MPE_E0 (3D) = (2.9 + L/200) μm over 18 – 30 °C - Max. Permiss. Error (MPE) of scanning probing as per ISO 10360-4:2000
within Maximum Permissible Time (MPT) for scanning test
– MPE_THP = 2.9 μm in MPT_tau = 55 s
Single stylus form error as per ISO 10360-5:2010
– MPE_PFTU = 2.4 μm - Form measuring tolerance as per ISO 12181:2011 (VDI/VDE 2617 part 2.2)
– MPE_RONt (MZCI) = 2.4 μm - VAST XXT measurement technology (tactile passive scanning)
- VAST probing measurement technology for shortened probing times at single measurement points
- PC-based Integrated Scanning Control (ISC) by internal controller C99m
- International Protection (IP) rating:
– IP53 for controller
– IP54 for shopfloor base - Glass-ceramic scales in all 3 axes
- Guideways: fully enclosed in all axes
- Integrated passive vibration damping
- Software: CALYPSO

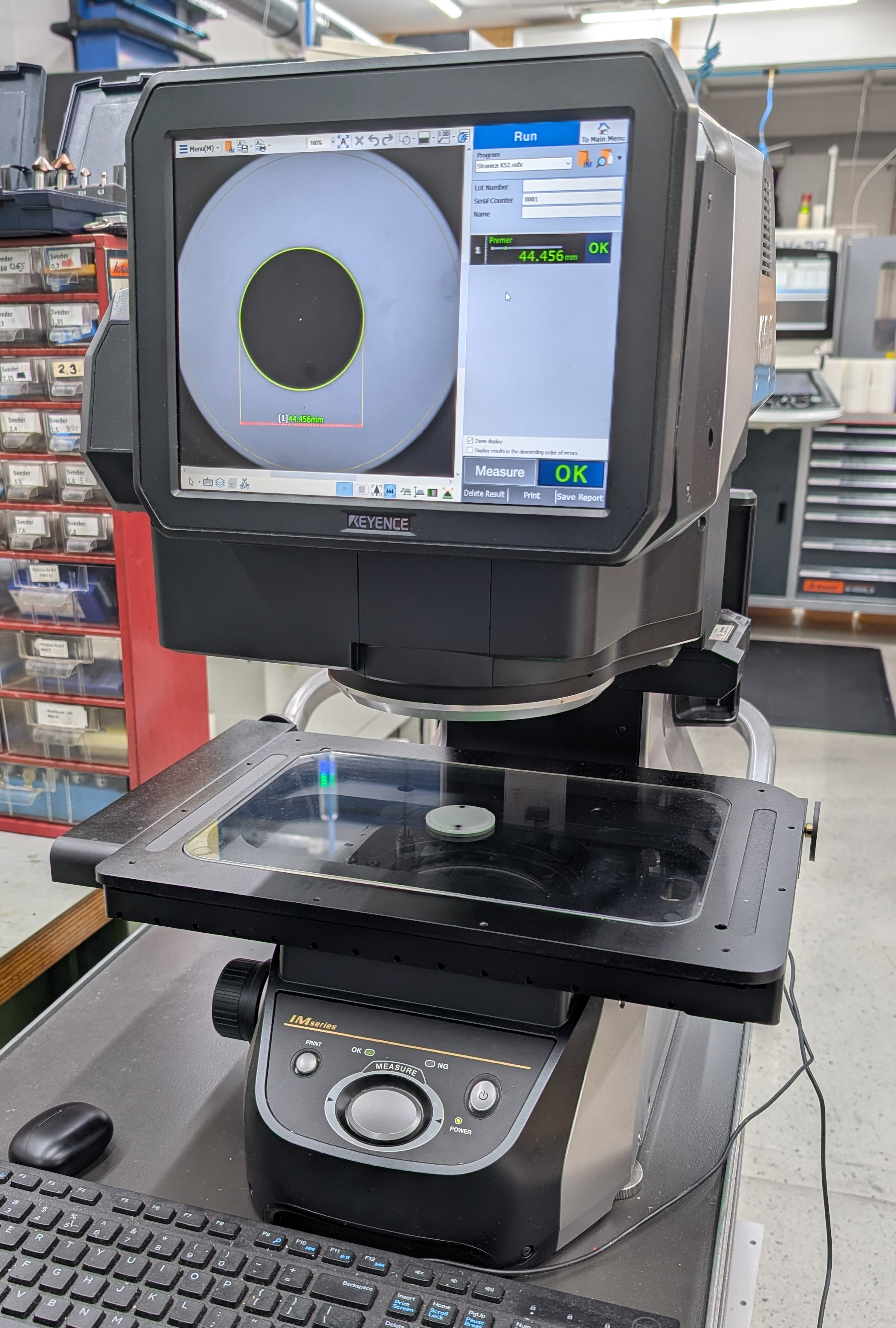

Keyence IM-7030T
The IM-7030T is a precision optical measuring unit that uses telecentric lenses and a monochromatic CMOS sensor. It provides high-precision measurements with minimal errors, both without and with stage movement. It offers a wide measurement range and allows the user flexibility in settings, supporting high accuracy and repeatability.
Technical information:
- Contact Height Measurement Unit
- Image sensor: 1” 6.6 mega pixel monochrome CMOS
- Receiver lens: Double telecentric lens
- Image measurement:
– Wide-field measurement mode: 300 mm × 200 mm (4× R50)
– High-precision measurement mode: 225 × 125 mm - Minimum display unit: 0,1 µm
- Light probe measurement:
– Measurable area (XY): 190 × 90 mm
– Maximum measurement depth: 30 mm
– Light probe diameter: ø3 mm
– Measuring force: 0,015 N
– Repeatability: ±2 µm
– Measurement accuracy: ±(8 + 0,02 L) µm - Height measurement:
– Measurement range: 0 do 75 mm
– Measuring force: 0,3 N
– Measurement accuracy (XY): ±0,2 mm
– Minimum display unit: 1 µm
– Measurable area (XY):
– Wide-field measurement mode: 145 × 95 mm
– High-precision measurement mode: 107,5 × 95 mm
– Repeatability: ±2 µm
– Measurement accuracy: ±7,5 µm - Illumination system:
– Transparent: Telecentric transparent illumination
– Ring: Four division, multi-angle illumination (electric), Slit ring (directivity) illumination (electric) - XY stage:
– Moving range: 200 × 100 mm (electric)
– Withstand load: 7,5 kg - Environmental resistance:
– Ambient temperature: +10°C do 35°C
– Relative humidity: 20 % RH do 80 % RH (no condensation)
